Product Overview

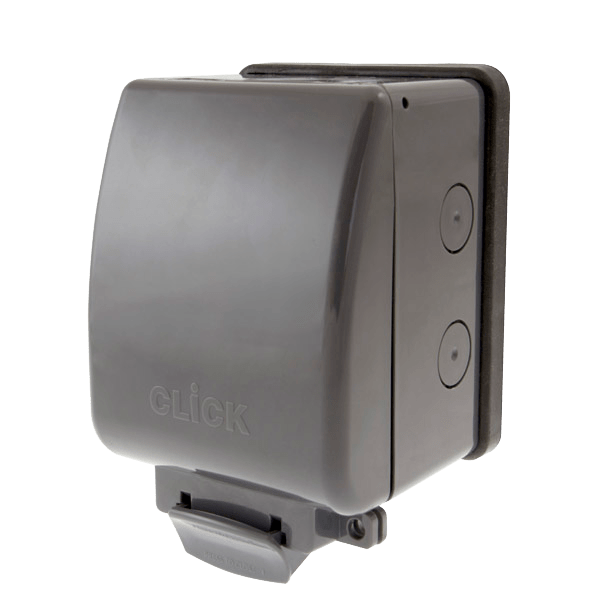

The OA035 / Aquip66 OA035AG is a 13A, single-gang, double-pole switched socket unit built for tough environments. Designed to deliver reliable outdoor or industrial power connections, it provides excellent protection against the elements while maintaining functional aesthetics.
Key Features
-
Single gang, 13A rating with double pole switching for enhanced safety.
-
Weatherproof IP66 enclosure that protects against dust ingress and powerful water jets.
-
Lockable cover to secure the socket and prevent tampering.
-
Constructed in durable and UV-protected polycarbonate material to withstand harsh outdoor use without fading or degrading.
-
Anthracite grey finish with a semi-transparent lid for visibility and style.
-
Flexible rubber base which allows installation onto slightly uneven or rough surfaces.
-
Multiple 20mm knock-out entries (gland entries) permit versatile cable entry from different angles.
-
PLC: BS1363 approval, ensuring compliance with UK standard for switched sockets.
Technical Specs
| Spec | Details |
|---|---|
| Model Number | OA035 / OA035AG |
| Current Rating | 13A |
| Voltage | 250V AC |
| Enclosure Rating | IP66 |
| Material | Polycarbonate (UV protected) |
| Finish | Anthracite grey with semi-transparent cover |
| Dimensions | 87 mm (W) × 158 mm (H) × 90 mm (D) |
| Terminal Capacity | 3 × 2.5 mm² or 2 × 4 mm² cable entries/terminals |
| Temperature Range | −5°C to +40°C |
Ideal Use Cases
-
Outdoor socket points such as gardens, patios, or exterior walls
-
Industrial locations, workshops, and harsh environments where dust or water exposure is a concern
-
DIY or trade installations where durability and protection are required
-
Areas where security and safety are priorities (lockable cover; robust enclosure)
