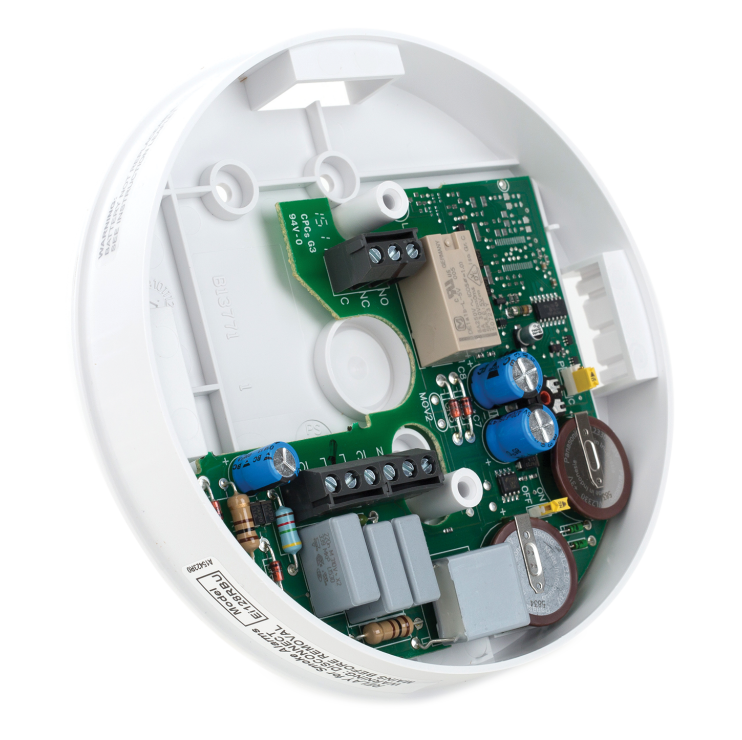

Ei128RBU Mains Relay Base with Battery Backup

The Ei128RBU Mains Relay Base is a versatile accessory designed to extend the functionality of compatible smoke, heat, and carbon monoxide alarm systems. When an alarm in the interconnected system is triggered, the relay module activates connected external devices such as strobe lights, control panels, door release mechanisms, or telecare systems, helping improve safety and response during emergencies.

The unit operates on a 230V mains power supply and includes tamper-proof rechargeable lithium cells that provide battery backup in the event of a power failure. These cells are designed to last up to 10 years and can keep the relay operating for up to two months without mains power, ensuring continued functionality during outages.

Designed for flexible installation, the Ei128RBU can be fitted underneath compatible alarm bases or mounted remotely using the supplied cover. Its volt-free contacts allow it to integrate easily with a wide range of safety and signalling devices.

Key Features

• Mains powered relay module with rechargeable lithium battery backup

• Activates external devices such as strobes, panels, or door releases when alarms trigger

• Volt-free contacts (NO/NC) for flexible system integration

• Continuous or pulse output modes for different applications

• Hard-wired interconnect with compatible alarm systems

• Up to 12 interconnected devices supported in a system

• Up to 2 months operation during mains power failure

The Ei128RBU relay base is an ideal solution for expanding alarm system functionality, allowing additional safety equipment and signalling devices to activate automatically when an alarm is triggered.
