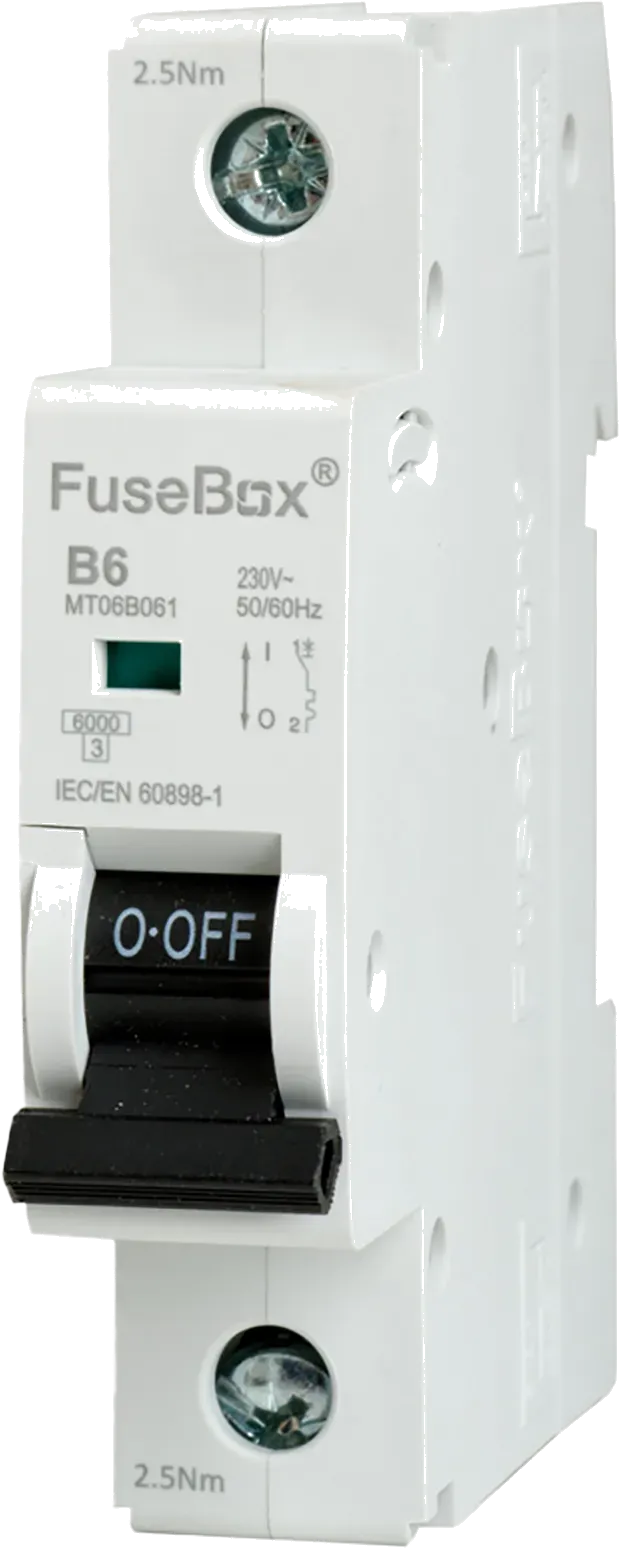

FuseBox MT06B061 6A Type B MCB

The FuseBox MT06B061 is a 6A Type B single-pole miniature circuit breaker (MCB) designed to protect electrical circuits from overloads and short circuits in consumer units and distribution boards. It automatically disconnects the power supply when abnormal current levels are detected, helping to protect wiring, appliances, and electrical installations.

This MCB features a Type B tripping curve, making it suitable for standard domestic circuits such as lighting and small power loads where moderate inrush currents are expected. With a 6 kA short-circuit breaking capacity, it provides reliable protection for modern residential and light commercial electrical systems.

The compact single-module design allows the breaker to fit neatly into FuseBox consumer units and other compatible DIN-rail distribution boards. Its durable construction and thermal-magnetic trip mechanism ensure consistent performance and long-term reliability.

Key Features

• 6A current rating

• Single-pole miniature circuit breaker (MCB)

• Type B tripping curve (3–5× rated current)

• 6 kA short-circuit breaking capacity

• Thermal-magnetic trip mechanism for overload and short-circuit protection

• DIN rail mounted for consumer units and distribution boards

• 1-module width for compact installation

• Suitable for FuseBox consumer units and similar systems

Specifications

• Product Code: MT06B061

• Current Rating: 6A

• Number of Poles: 1 (Single Pole)

• Breaking Capacity: 6 kA

• Voltage Rating: 230 V

• Tripping Curve: Type B

• Mounting Type: 35 mm DIN Rail

• Terminal Capacity: up to 16 mm²

• Standards: IEC / EN 60898-1
