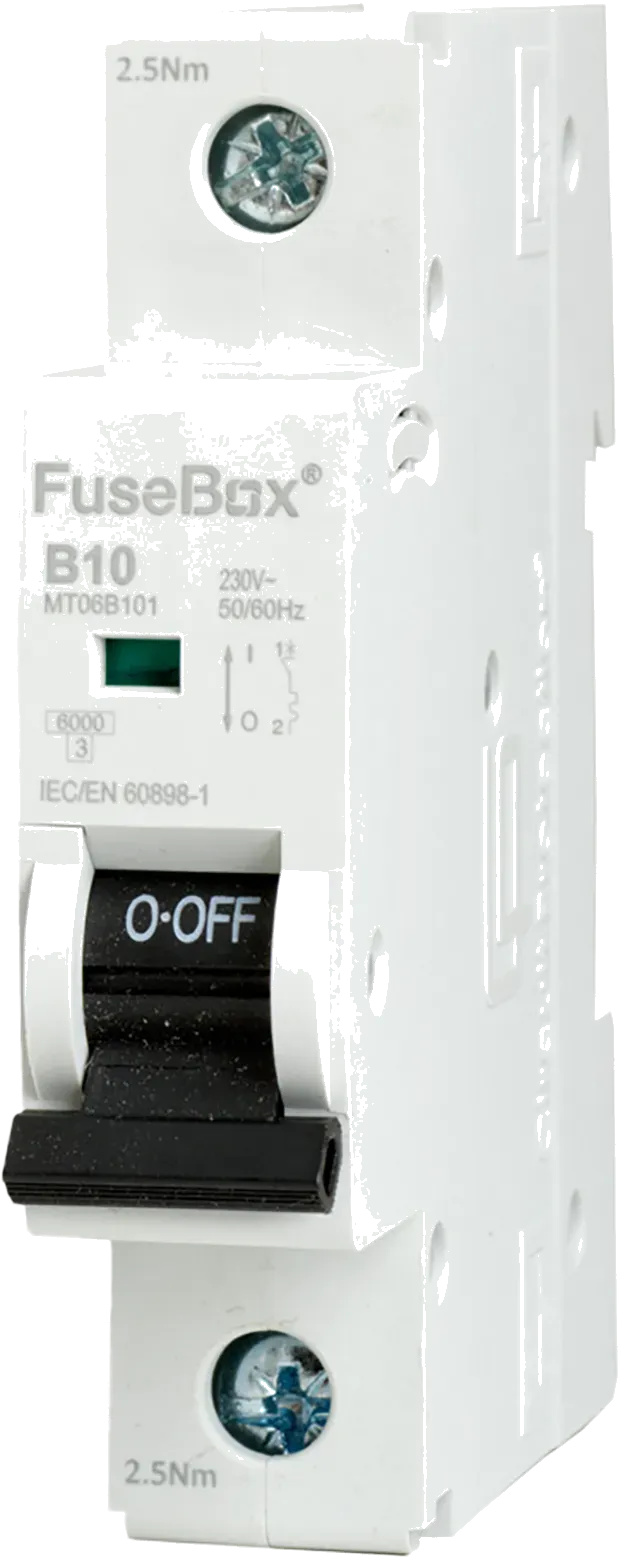

FuseBox MT06B101 10A Type B MCB

The FuseBox MT06B101 is a 10A Type B single-pole miniature circuit breaker (MCB) designed to protect electrical circuits from overloads and short circuits. Installed within consumer units or distribution boards, it automatically disconnects the power supply when abnormal current levels occur, helping protect wiring and electrical equipment.

Featuring a Type B tripping curve, the breaker is suitable for standard domestic and light commercial circuits such as lighting or low-inrush electrical loads. With a 6 kA short-circuit breaking capacity, it provides reliable protection for modern electrical installations and complies with recognised safety standards.

The compact single-module design allows the MCB to fit easily into FuseBox consumer units and other compatible DIN-rail distribution boards. Its thermal-magnetic trip mechanism ensures dependable circuit protection and long-term reliability in everyday electrical systems.

Key Features

• 10A current rating

• Single-pole miniature circuit breaker (MCB)

• Type B tripping curve (3–5 × rated current)

• 6 kA short-circuit breaking capacity

• Thermal-magnetic trip mechanism for overload and short-circuit protection

• DIN rail mounting for consumer units and distribution boards

• 1-module compact design

• Suitable for FuseBox consumer units and similar distribution boards

Specifications

• Product Code: MT06B101

• Current Rating: 10A

• Number of Poles: 1 (Single Pole)

• Breaking Capacity: 6 kA

• Rated Voltage: 230 V

• Frequency: 50/60 Hz

• Tripping Curve: Type B

• Terminal Capacity: up to 16 mm²

• Mounting: 35 mm DIN Rail

• Standard: IEC / EN 60898-1
