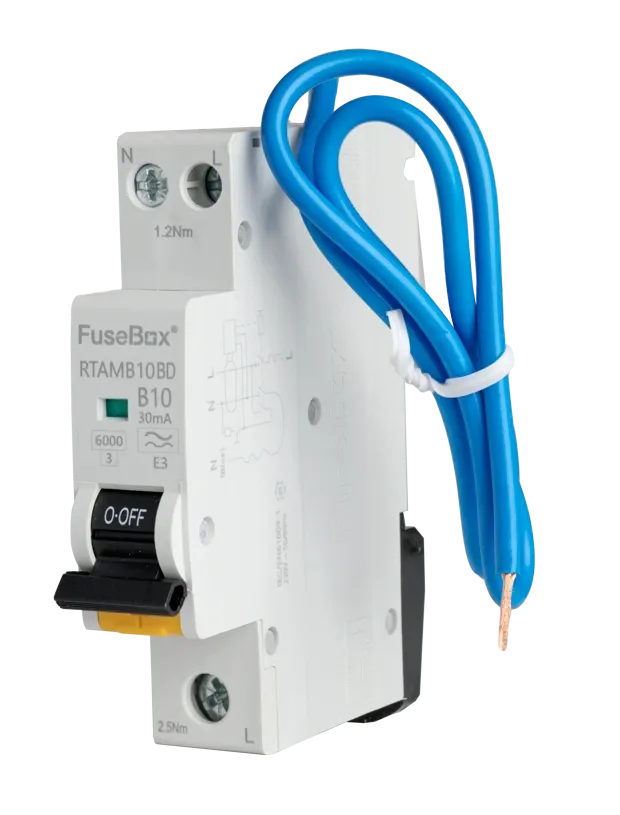

FuseBox RTAMB10BD 10A Type B RCBO – 30mA 6kA

The FuseBox RTAMB10BD is a 10A Type B bidirectional RCBO designed to provide combined protection against overloads, short circuits, and earth leakage faults within electrical installations. Installed in a consumer unit or distribution board, the device automatically disconnects the circuit if a fault occurs, helping protect wiring and connected equipment.

With a 30 mA residual current sensitivity, this RCBO provides protection against electric shock while maintaining reliable circuit protection. The Type A RCD technology enables detection of both AC residual currents and pulsating DC currents commonly produced by modern electronic equipment.

The RCBO features a compact single-module design with 1P+N switching, disconnecting both live and neutral conductors for enhanced safety. Its bidirectional capability also makes it suitable for installations where current may flow in either direction, such as solar PV systems.

Key Features

• 10A current rating

• Type B tripping curve

• 30 mA residual current protection

• Type A RCBO technology

• 6 kA short-circuit breaking capacity

• 1P + N switched design

• Bidirectional operation

• Single-module compact design

• DIN rail mounting

Specifications

• Product Code: RTAMB10BD

• Current Rating: 10A

• Residual Current: 30 mA

• Tripping Curve: Type B

• Breaking Capacity: 6 kA

• Poles: 1P + N

• Voltage: 230V AC

• Mounting: 35mm DIN Rail

• Standard: IEC / EN 61009-1
