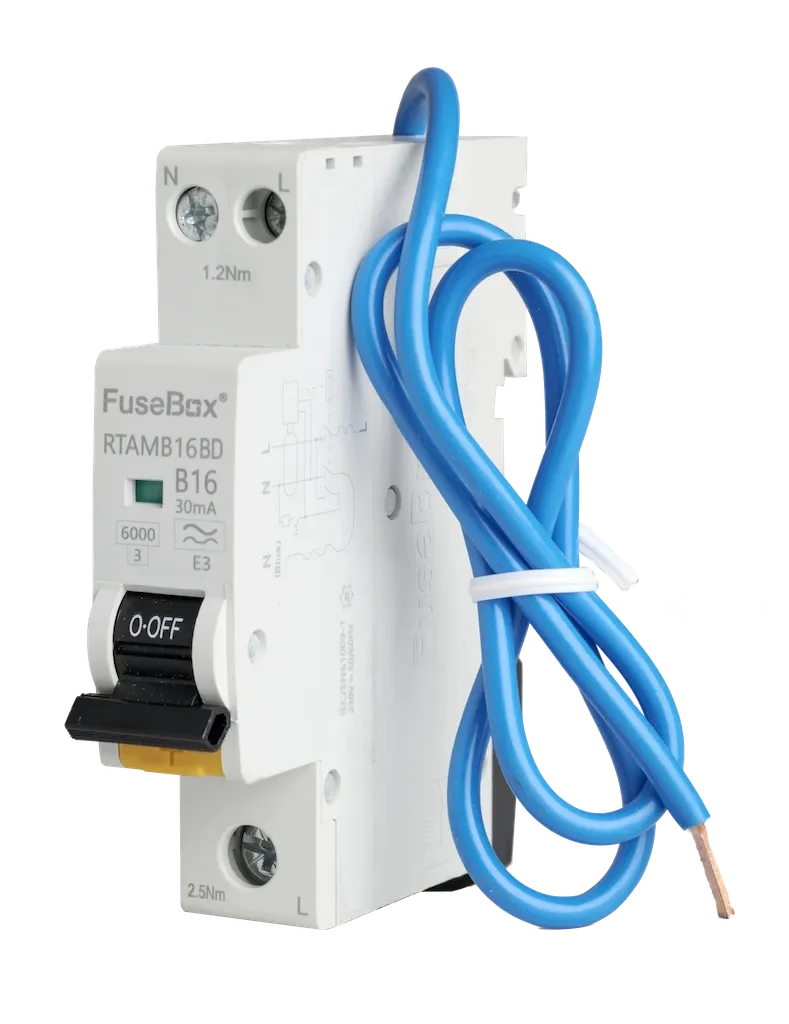

FuseBox RTAMB16BD 16A Type B RCBO – 30mA 6kA

The FuseBox RTAMB16BD is a 16A Type B bidirectional RCBO designed to protect circuits against overload, short circuit, and earth leakage faults. Installed within consumer units or distribution boards, the RCBO disconnects the supply when abnormal current conditions occur.

With 30 mA residual current protection, the device helps protect users against electric shock. The Type A detection technology allows the device to respond to both AC and pulsating DC leakage currents generated by modern electrical appliances.

Its single-module design allows easy installation in FuseBox consumer units while the 1P+N switching mechanism disconnects both live and neutral conductors.

Key Features

• 16A current rating

• Type B tripping curve

• 30 mA earth leakage protection

• Type A RCBO detection

• 6 kA breaking capacity

• Bidirectional operation

• Compact single-module design

• DIN rail mounting

Specifications

• Product Code: RTAMB16BD

• Current Rating: 16A

• Residual Current: 30 mA

• Breaking Capacity: 6 kA

• Poles: 1P + N

• Voltage: 230V AC

• Mounting: 35mm DIN Rail

• Standard: IEC / EN 61009-1
