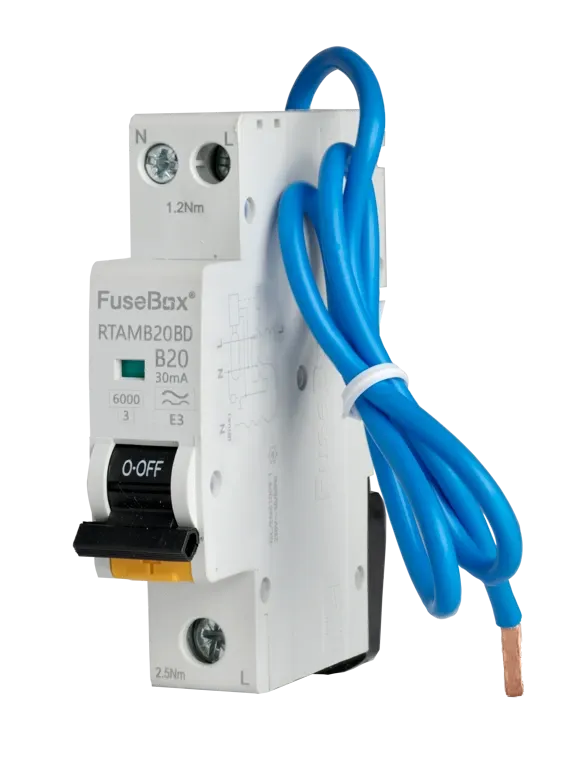

FuseBox RTAMB20BD 20A Type B RCBO – 30mA 6kA

The FuseBox RTAMB20BD is a 20A Type B bidirectional RCBO designed to provide protection against overloads, short circuits, and earth leakage faults in electrical installations. The RCBO disconnects the circuit automatically when a fault is detected, helping to safeguard wiring and connected appliances.

Featuring 30 mA residual current protection, the device provides effective protection against electric shock. The Type A RCD technology allows the RCBO to detect AC and pulsating DC leakage currents from modern electronic equipment.

Its compact single-module design makes installation simple while its 1P+N switching ensures both live and neutral conductors are isolated.

Key Features

• 20A current rating

• Type B tripping curve

• 30 mA residual current protection

• Type A RCBO technology

• 6 kA breaking capacity

• Bidirectional operation

• Single-module compact design

• DIN rail mounting

Specifications

• Product Code: RTAMB20BD

• Current Rating: 20A

• Residual Current: 30 mA

• Breaking Capacity: 6 kA

• Poles: 1P + N

• Voltage: 230V AC

• Mounting: 35mm DIN Rail
