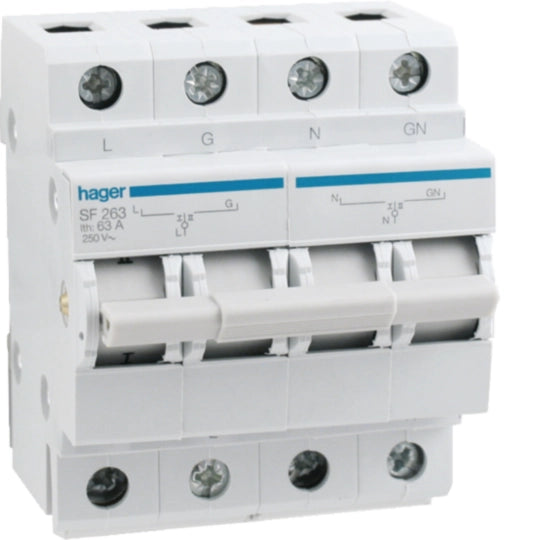

Hager SF263 63A 2-Pole Changeover Switch (I-0-II)

The Hager SF263 is a 63A 2-pole modular changeover switch designed to safely transfer power between two electrical sources. With its I-0-II switching configuration, the device allows manual selection between two supplies—such as mains power and a backup generator—while the centre-off position ensures complete circuit isolation during switching.

Designed for installation in consumer units or distribution boards, the switch is DIN-rail mounted and occupies 4 modules, making it suitable for compact electrical installations. It is commonly used in applications requiring safe manual switching between alternative power sources.

With a 63A rated current and durable construction, the SF263 provides reliable performance for residential, commercial, and light industrial installations where controlled power transfer is required.

Key Features

• 63A rated current

• 2-pole changeover switch (2P)

• I-0-II switching positions with centre-off isolation

• Designed for switching between two power sources

• DIN rail mounting for consumer units and distribution boards

• 4-module width for modular installations

• 6 kA short-circuit rating when protected by suitable fuses

• Suitable for mains / generator changeover applications

Specifications

• Product Code: SF263

• Current Rating: 63A

• Number of Poles: 2

• Switch Positions: I-0-II

• Rated Operational Voltage: 230V AC

• Rated Insulation Voltage (Ui): 500V

• Impulse Withstand Voltage (Uimp): 4 kV

• Short-Circuit Rating: 6 kA (with gL/gG fuse protection)

• Mounting Type: 35 mm DIN Rail

• Module Width: 4 Modules
