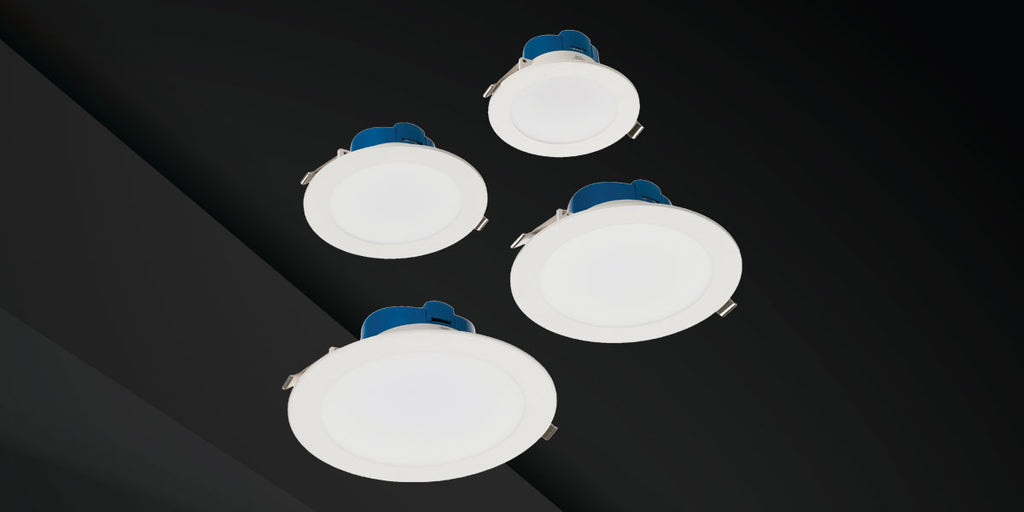

The CDL20MCD is a powerful 19W recessed LED downlight that delivers high output with excellent efficiency and adaptable lighting control. Perfect for larger commercial and retail spaces, it combines strong illumination, colour flexibility, and professional design.
Key Features
-
Power & Output: 19 watts delivering approx. 2,050 / 2,150 / 2,100 lumens, depending on the selected colour temperature.
-
Selectable Colour Temperatures: 3-CCT option (2700K / 4000K / 5700K) via a dip-switch for flexibility in lighting ambience.
-
High Efficiency: Over 110 lumens per watt, making it very energy efficient.
-
Size & Cut-Out: Outer diameter of 225 mm, with cut-out required between 200-210 mm, making it suitable for large-ceiling installations.
-
Dimming: Triac dimmable for smooth control from high to low light levels.
-
Quality Construction: Built with durable materials and modern LED technology for reliable performance in demanding settings.
Ideal Applications
-
Large retail areas and showrooms
-
Spacious commercial offices
-
Lobbies, corridors, receptions
-
Hospitality venues with larger ceiling areas
-
Any large space requiring efficient, high lumen lighting
Quick Specs
| Specification | Details |
|---|---|
| Model | CDL20MCD |
| System Power | 19 W |
| Lumen Output | ~2,050-2,150 lm |
| Colour Temperatures | 2700K / 4000K / 5700K |
| Efficiency | >110 lm/W |
| Diameter | 225 mm |
| Cut-Out Size | 200-210 mm |
| Dimming | Triac, 3-CCT selectable |
| Applications | Large commercial / retail / general lighting environments |
