Description

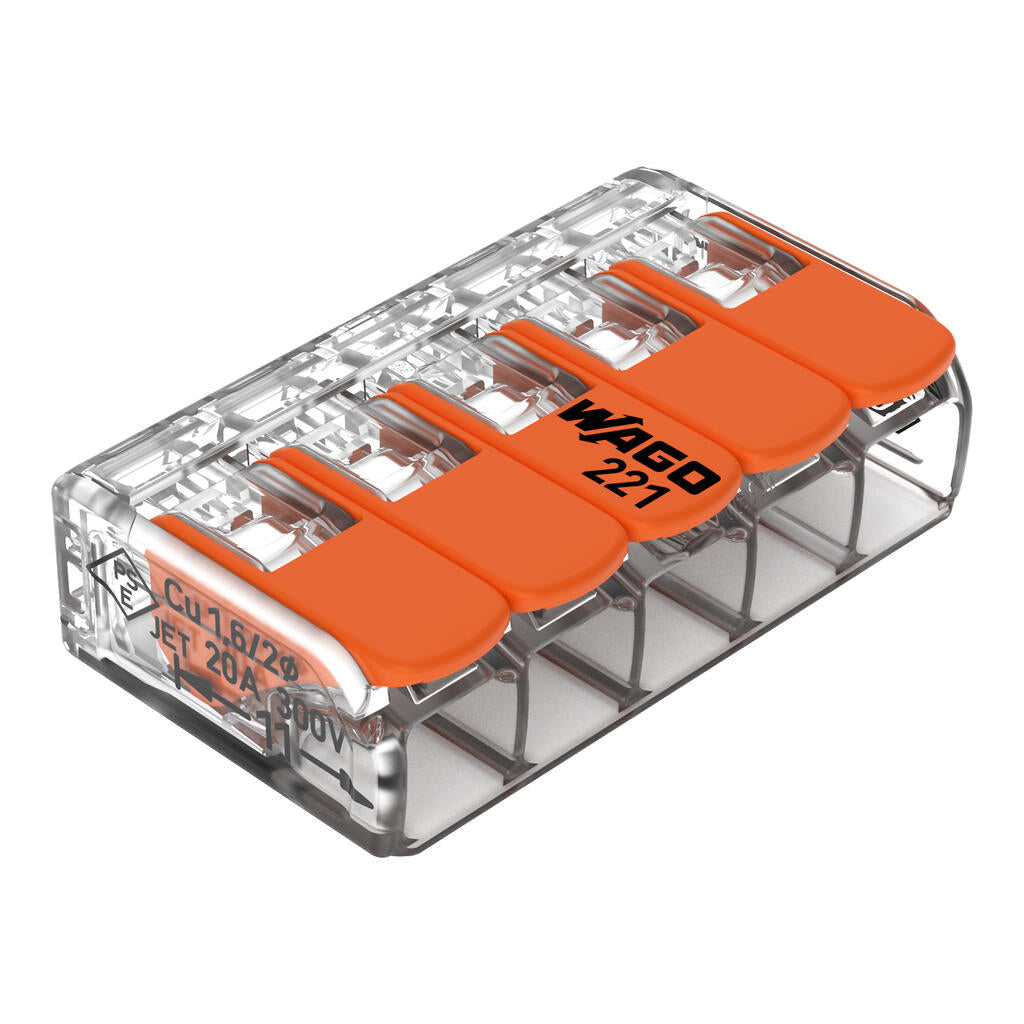

- 5-Way Splicing Connector – Allows up to five electrical conductors to be joined together within one compact connector.
- Ideal for Multiple Connections – Particularly useful where several conductors need to share the same electrical connection.
- Suitable for All Conductor Types – Compatible with solid, stranded and fine-stranded conductors.
- Up to 4mm² Capacity – Suitable for fine-stranded conductors from 0.14–4mm² and solid/stranded conductors from 0.2–4mm². WAGO Embedded
- 32A / 450V Rating – Designed for a wide variety of electrical installation applications. WAGO Embedded
- Individual Lever Operation – Each conductor position has its own lever for straightforward connection and disconnection.
- Transparent Housing – Allows conductor insertion to be visually inspected without opening the connector.
- 11mm Strip Length – Provides a clear preparation measurement for reliable installation.
- Compact Design – Helps reduce the space required compared with traditional connection methods.
- Maximum Ambient Temperature: 85°C (T85).
- Pack Quantity: 25 Connectors
