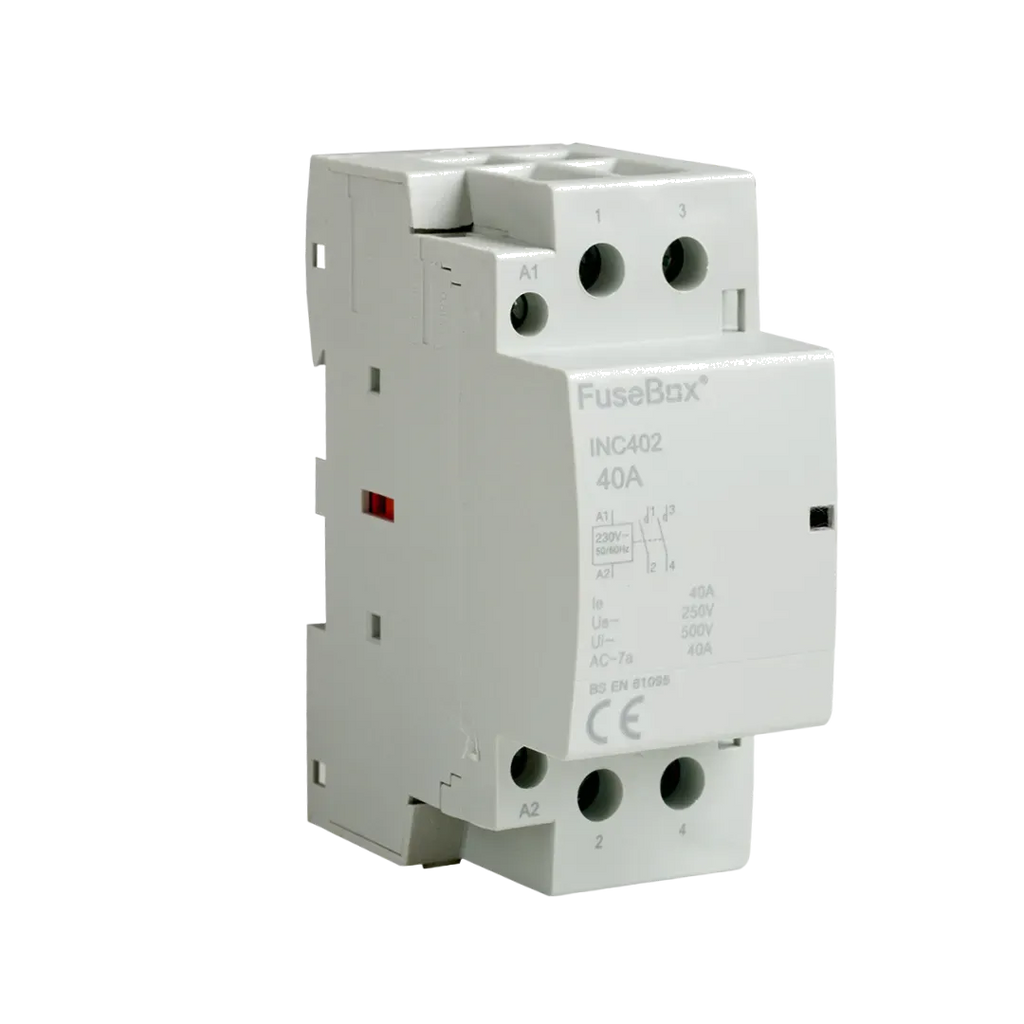

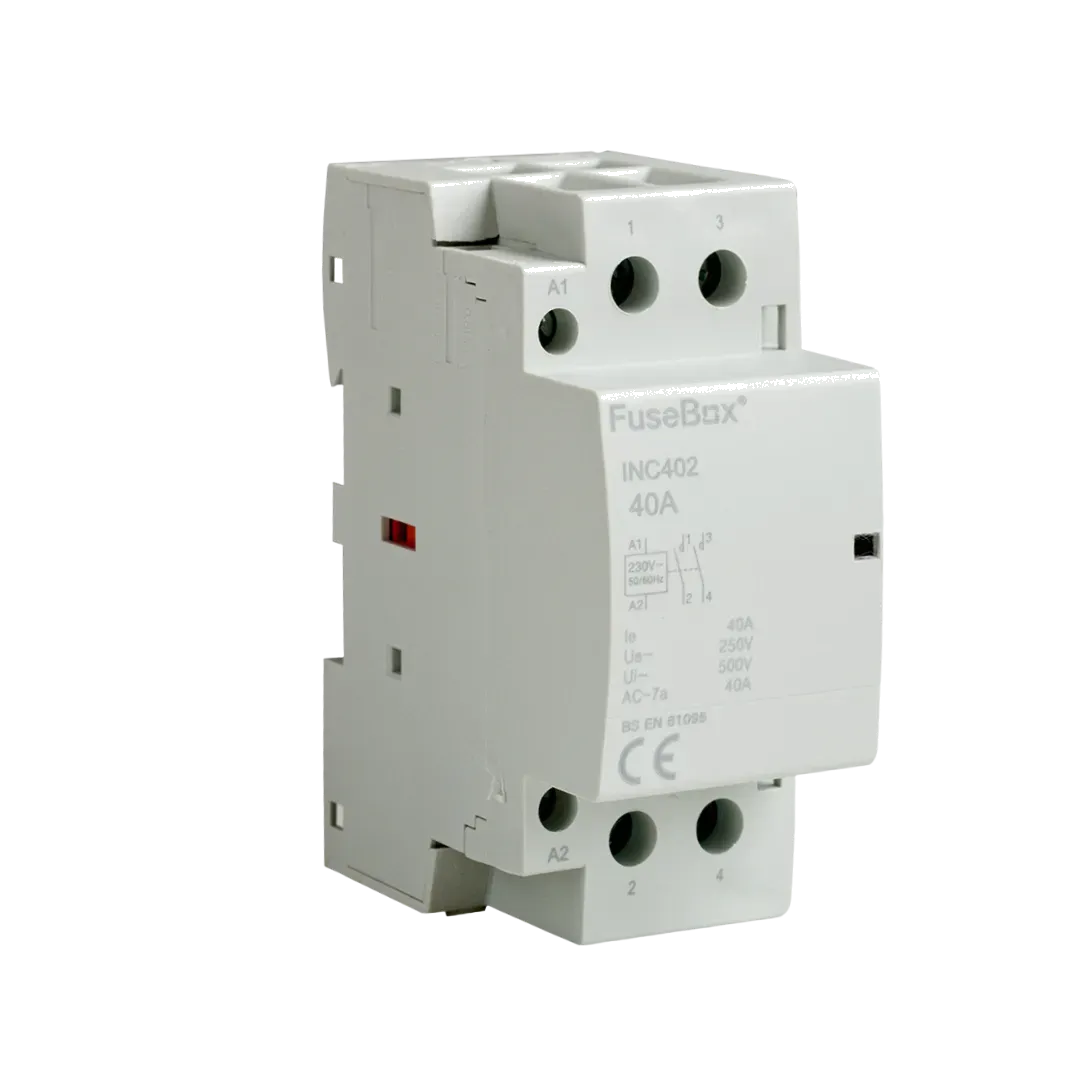

FuseBox INC402 40A 2-Pole Installation Contactor – 230V

The FuseBox INC402 is a 40A 2-pole installation contactor designed for controlling lighting, heating, and other electrical loads in residential, commercial, and light industrial installations. Installed on a standard DIN rail within a consumer unit or distribution board, the contactor allows circuits to be switched automatically or remotely via timers, relays, or control systems.

With a 2-pole normally-open (N/O) configuration, the INC402 provides reliable switching for two electrical circuits. Its compact 36 mm modular width makes it easy to integrate into existing consumer units while saving valuable installation space.

Designed for durability and consistent performance, the contactor features screw terminals for secure wiring and includes two 9 mm heat-dissipation spacers to maintain optimal operating temperatures during continuous use.

Key Features

• 40A rated installation contactor

• 2-pole normally open (2NO) configuration

• 230V AC control voltage

• Designed for lighting, heating, and load control applications

• Compact 36 mm width for modular installations

• DIN rail mounting for consumer units and distribution boards

• Screw terminal connections for secure wiring

• Supplied with 2 × 9 mm heat-dissipation spacers

• Suitable for domestic, commercial, and light industrial installations

Specifications

• Product Code: INC402

• Current Rating: 40A

• Control Voltage: 230V AC

• Number of Poles: 2

• Contact Configuration: 2NO (Normally Open)

• Mounting Type: DIN Rail

• Device Width: 36 mm

• Terminal Capacity: up to 16 mm²

• Standards: BS EN 61095 compliant
